Hydrolic Grip Front Loading Universal Testing Machine Manufacturers in India
![Product Image](assets/images/Product\Hydraulic-Grip-Front-Loading-Universal-Testing-Machine.webp)

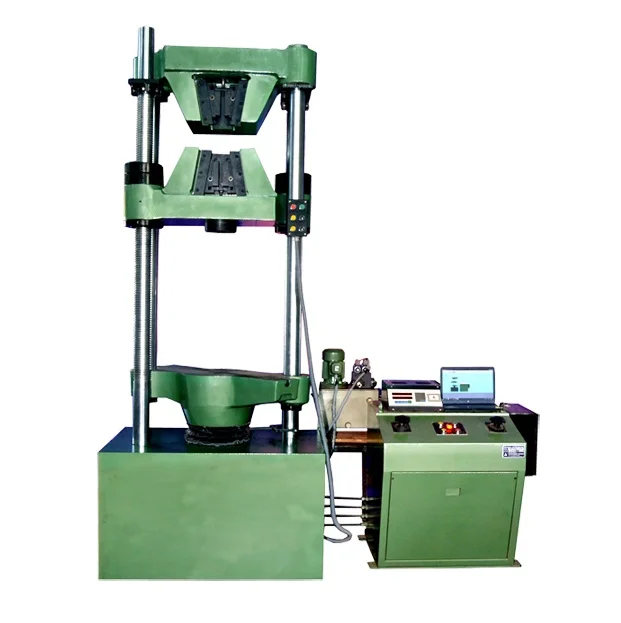

Hydrolic Grip Front Loading Universal Testing Machine
We are Manufacturer, Supplier, Exporter of Hydraulic Grip Hydraulic Grip Front Loading Machines. Our setup is situated in Ichalkaranji, Maharashtra, India and majorly we serve customers from African and Gulf countries.
Features
- ⮚ Loading accuracy as high as ±1 %
- ⮚ Straining rate to cover a wide range of materials.
- ⮚ Motorised loading and unloading.
- ⮚ High reading accuracy due to large size and design diel.
- ⮚ Simple control to facilitate ease of operation.
- ⮚ Fully enclosed and protected load measuring system.
- ⮚ Wide range of standard and special accessories including load stabilizer.
- ⮚ Robust straining frame.
- ⮚ High reading accuracy due to large size and design diel.
- ⮚ Motorised UP/DOWN movement of lower crosshead to enable easy and rapid fixing of test specimen.
Specifications
SR. NO. | SPECIFICATIONS | DETAILS |
---|---|---|
1 | Loading Capacity – (KN) | 1000 |
2 | Load accuracy | + 1% from 2% to 100% of Machine capacity |
3 | Range(KN) | 20-1000 |
4 | Load Resolution (KN) | 0.05 |
5 | Max clearance for compression (mm) | 0-850 |
6 | Max clearance for tension at fully descended piston (mm) | 50-850 |
7 | Distance between columns(mm) | 850 |
8 | Piston stroke (mm) | 220 |
9 | Resolution of Piston(mm) | 0.1 |
10 | Loading rate (KN/mm) | 0-80 |
11 | Straining rate ( mm/min max) | 45 |
12 | Standard accessories a) Round Jaws b) Flat jaws |
10-25,25-45,45-70 0-2.2,22 -44,44-65 |
13 | For Compration Test (mm) Pair of compration plates | 120 |
14 |
For Transverse Test Table with adjustable rollers a) Width of rollers(mm) b)Dia of rollers (mm) c) Maximum clearance between supports (mm) d) Radius of Punch Tops (mm) |
160 50 800 16, 22 |
15 | Connected Load | 5HP, 400 -440V, 3 phase |
16 | LX W X H (Approx) (mm) | 2500 X 875 X 3175 |
17 | Weight (Approx) (Kg) | 5500 |
