Computerised Fully Automatic Brinell Hardness Tester
'TESTCRAFT' Computerised Fully Automatic Brinell Hardness Tester, Model B3000-PC-FA is fabricated from steel plates and is designed for precise loading system. It is fully automatic machine for production testing.
Technical Specifications
- ⮚ Fully automatic machine for production testing.
- ⮚ Fully computerised (PC based) Brinell Hardness Tester.

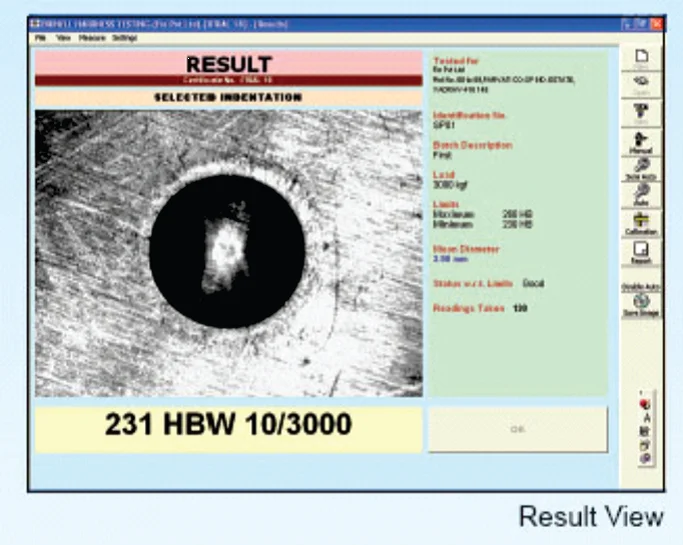

- ⮚ Direct and accurate measurement of Brinell hardness number
using "State of Art" image processing technology. - ⮚ Wide testing range : From soft metal such as lead up to hardest, like tempered steel.
- ⮚ High accuracy and repeatability of measurement at all loads.
PC Requirements
- ⮚ Latest GUI features with user-friendly software.

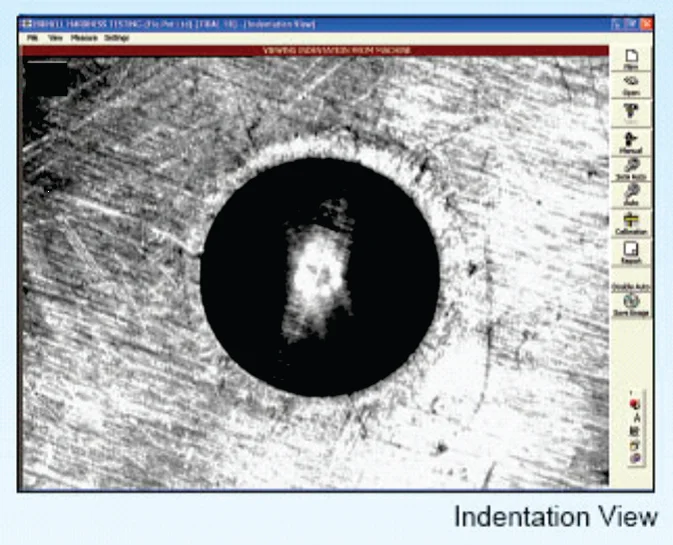

- ⮚ On-line indentation setting and focusing on the PC monitor.
- ⮚ Advanced image processing: Algorithms implemented
- ⮚ for precise calculations of hardness numbers with various
- ⮚ options to cover all ranges of specimens.
- ⮚ Batch file processing: Option for data/storage and reports
- ⮚ generation.
- ⮚ Statical Evaluation: Software for calculating standard
- ⮚ deviation, mean, median, frequency distribution graph,
- ⮚ variation graph etc.
- ⮚ Calibration mode facility.
- ⮚ Extendibility for future advanced image processing analysis,
- ⮚ requirements.
- ⮚ “Auto measurement start” from the machine.
Scope of Supply
PC Requirements
- ⮚ Load Range 250 to 3000 kgf in stages of 250 kgf
- ⮚ test height 380 mm
- ⮚ of throat 200 mm
- ⮚ Machine height ( approx ) 1185mm
- ⮚ Net Wight ( approx ) 450 kg.
- ⮚ Drive Power 0.66 HP
- ⮚ Mains supply 415 V, 50Hz, 3phase
- ⮚ Measuring accuracy with CCD camera and built in optics 0.01 mm
- ⮚ Dwell timer 1 to 99sec.
- ⮚ Raising/lowering 240 mm/min
