Computerised Brinell Impression Measurement System (B.I.M.S)
'BIMS' Hand held unit with PC based Window operating system
The B.I.M.S virtually eliminates operator influence
It is found that measuring Brine ll indentations can result in measurement errors between operators. This B.I.M.S. can virtually eliminate operator influence on test result.
Just place and click! Operating B.I.A.S is easy
With this handy instrument entire test sequence is simple. Place the scan hand on the work piece on ‘Auto’ in tool bar on computer screen. The B.I.M.S. automatically measures the diameter of indentation with resolution of 0.01mm and display Brinell value with diameter measurement. All data storage functions are autom atically performed according to batch parameters

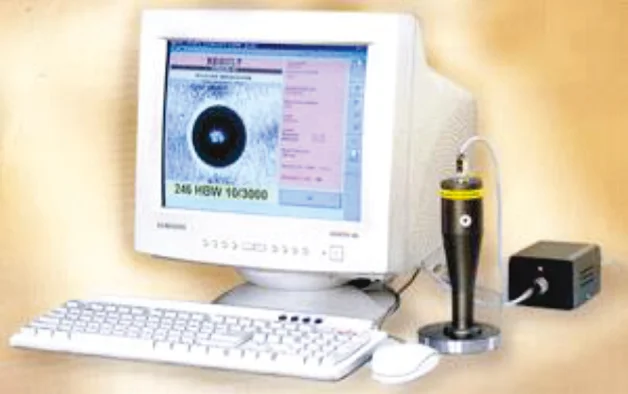

The B.I.M.S. can be configured to meet your needs
An unlimited number of batches can be created each with its own test parameters and certificates. The operator can select test load and indentor size with arty name, address, certificate no. date batch no. and description, high and low limits for readings etc. The previous batches can be reopened for viewing and address change etc. The B.I.M.S. has built in statistical capabilities with graph and certificatefor report generation and printing. It includes frequency distribution and variation graphs. The systems includes calibration and check facilities to calibrate the systems and for checking of calibration. This eliminates any systems error in measurement.
